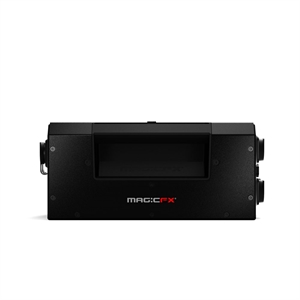

4 channels DMX512-A/RDM Switch for controlling 230V units as CO2 Jets, Stage Shot, Stadium Shot, Power Shot, Power Drop etc. This unit contains a safety circuit in the form of a DMX safety channel. Consequently, it requires 5 DMS channels - the 4 Switch channels that opens at 50%+ and additionally security address that must be set to 40-60% as the basis for the four channel to run. This simple "encryption" is to ensure that you don't accidentally activate some of the effects before the planned time and additionally to secure against DMX noise. The FX signal flashes red when the unit is activated. In the bottom, there's screw turrets for halfcoupler if you wish to fly the unit.
Measurements: 14x30,5x13,3cm
Weight: 4,2 kg
Voltage: 230V
Power: 4x5A, 16A max
Power in: Powercon True1
Power out: Powercon True1
DMX in/out: 5 polet XLR
